Top Selling Water-Filled Barriers

water filled barriers

24in x 96in Barrier

This low-profile (24 inches in height) yet long barrier is frequently used to temporarily block off closed areas of parking lots or streets. Barriers, which can interlock with each other, are available in multiple high-visibility colors.

water filled barricades

42in x 72in Barrier

This standard-height (42 inches tall), water-fillable plastic jersey barrier can be used as a highway barrier, or to block off areas in work zones or construction zones. Available in seven colors, these barriers provide high visibility.

32x72inch water filled barriers

32in x 72in Barrier

Ideal for blocking off temporary “no access” work zones on roads or in parking lots and available in seven colors (custom colors also available). Weights between 85-140 pounds.

Popular Water Filled Barrier Types

LOW PLASTIC BARRIERS

water filled jersey barriers

LOW PROFILE WATER-FILLED BARRIERS
Thumb Model Height Width Length Weight Resource
Low Plastic Barrier Specifications JB-10 28in 24in 72in 135lbs More Details
JB-11 31in 24in 120in 200lbs

JB-11 Spec Drawing
JB-12 34in 24in 72in 140lbs
JB-22 Plastic Barrier Specifications JB-22 24in 24in 96in 140lbs
JB-31 Plastic Barrier Specifications JB-32 32in 18in 72in 85lbs
TCRR-3206-72 32in 18in 72in 12.5lbs More Details
TCRR-3110-155 31in 24in 120in 12.5lbs More Details
TCRR-2408-50 24in 16in 96in 12.5lbs More Details
Available Colors Include: Orange, White, Yellow, Red, Military Green, Desert Tan, Gray
(Custom Colors Available – Please Call for Details)

PLASTIC BARRIERS UNDER THREE FEET TALL

  • Ideal for blocking off temporary “no access” work zones on roads or in parking lots
  • Available in five heights (from 24″ to 34″)
  • Available in three lengths (6, 8, or 10 feet wide)
  • Weights between 85-140 pounds
  • Available in seven colors (custom colors also available)

TOP

STANDARD PLASTIC BARRIERS

STANDARD PROFILE WATER-FILLED BARRIERS
Thumb Model Height Width Length Weight Resource
JB-13 Plastic Barrier Specification JB-13 42in 24in 72in 170lbs
JB-14 Plastic Barrier Specification JB-14 46in 24in 72in 180lbs
JB-23 Plastic Barrier Specifications JB-23 42in 24in 96in 200lbs
JB-33 Plastic Barrier Specifications JB-33 42in 24in 72in 100lbs More Details
TCRR-4206-100-4206-130-4206-170 42in 24in 72in 12.5lbs More Details
Available Colors Include: Orange, White, Yellow, Red, Military Green, Desert Tan, Gray
(Custom Colors Available – Please Call for Details)

42″ or 46″ HEIGHT WATER-FILLED BARRIERS FOR HIGHWAY USE

Easy to transport, store and set-up, standard-size Plastic Jersey barricades are commonly used as highway barriers, as well as at construction sites and temporary work zones. Water ballasted Plastic Jersey barriers provide high visibility and minimize damage to vehicles during impact.

Standard-size traditional Plastic Jersey barriers weigh (depending upon the model chosen) 100-200 pounds when empty, enabling rapid deployment in emergency situations. Water-filled barriers will weigh between 1,300 – 2,000 pounds, providing optimum stability.

  • These water-filled barriers are available in two heights (42” and 46”) and two lengths (72″ and 96″)
  • The standard size water Jersey barrier (42” x 24” x 72”) is available in both standard weight (170 pounds) or a lightweight version (100 pounds)
  • Water Filled Jersey barricades are available in seven colors, plus custom colors
  • Each Plastic Jersey barrier is water-fillable via the 6-inch fill hole at the top of the barricade.

Other applications for the standard-size Plastic Jersey barriers include special events, general crowd control, parking areas, and airports.

TOP

TALL PROFILE WATER-FILLED BARRIERS
Thumb Model Height Width Length Weight Resource
JB-15 Tall Plastic Barrier Specifications JB-15 54in 24in 72in 200lbs More Details
Available Colors Include: Orange, White, Yellow, Red, Military Green, Desert Tan, Gray
(Custom Colors Available – Please Call for Details)

54″ TALL HIGHWAY BARRIERS FOR EXTRA PROTECTION

This bigger, heavier model of a Plastic Jersey Barrier approaches the strength of a concrete barrier — at a much lower cost

  • Extra height adds visibility and strength
  • Ideal for construction sites and disaster control
  • Dimensions: 54″ x 24″ x 72″
  • 200 pound weight
  • Available in seven colors (plus custom colors)

TOP

42 in x 42 in WATER-FILLED WEDGE BARRIER

42 in x 42 in WATER-FILLED WEDGE BARRIER
Thumb Model Height Width Length Weight More Info
TCRR-4242-50 42in 42in 24in 12.5lbs More Details
Available Colors Include: Blue, Orange, White, Yellow, Desert Tan, Green
(Custom Colors Available – Please Call for Details)

42 in x 42 in WATER-FILLED WEDGE BARRIER

This 42″ x 42″ barricade is ideal for use on sidewalks or pedestrian walkways. Easy to move into place, the wedge barrier is strong and durable. Block off “no access” areas with this plastic barrier, available in multiple colors.

  • Composition: UV-Resistant Polyethylene
  • Size: Height: 42” /1067mm
  • Length: 24” / 610mm
  • Width: 42” / 1067mm

TOP

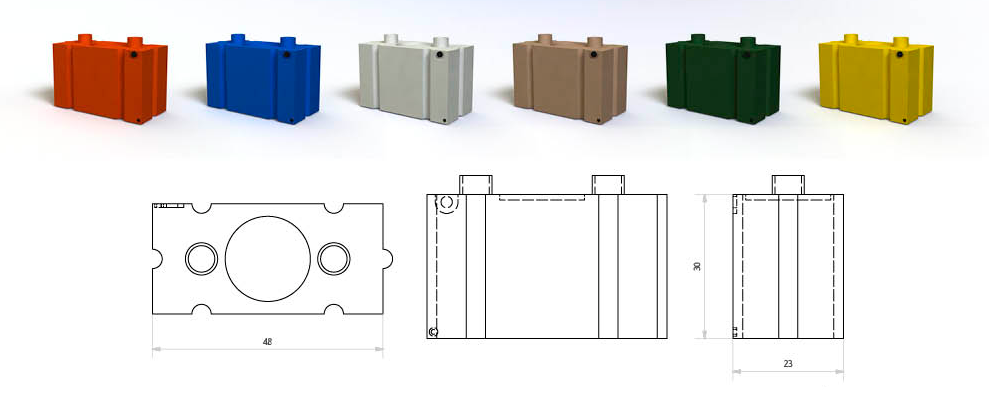

48 in x 23 in WATER-FILLED WALL BARRIER

48 in x 23 in WATER-FILLED WALL BARRIER
Thumb Model Height Width Length Weight More Info
TCRR-2304-50 30in 23in 48in 12.5lbs More Details
Available Colors Include: Blue, Orange, White, Yellow, Desert Tan, Green
(Custom Colors Available – Please Call for Details)

48 in x 23 in WATER-FILLED WALL BARRIER

Block off restricted areas with these plastic barriers that create walls. These barriers (30 inches in height) can be placed alongside each other, and they can also be placed on top of each other to build walls of varying heights. Wall barriers are used for crowd control, traffic control, border patrols, airports, and anti-terrorism purposes.

  • Composition: UV-Resistant Polyethylene
  • Size: Height: 30” / 762mm
  • Length: 48” / 1219mm
  • Width: 23” / 584mm

TOP

MOBILE-CADE BARRIERS

MOBILE-CADE BARRIERS
Thumb Model Height Width Length Weight Resource

Mobil-Cade Barrier Specifications
JB-16 36in 24in 36in 40lbs More Details

COMPACT PORTABLE PLASTIC BARRIERS

Three-Foot (Height and Length) Barriers for Parking, Traffic and Pedestrian Control

These colorful, highly visible three-foot high by three-foot long barriers are used to:

  • Redirect traffic or pedestrians
  • Block off passenger pick up or drop-off areas
  • Call attention to crosswalks or loading zones
  • Block construction areas or emergency zones

Mobile-Cade Barrier Specifications

  • Height: 36 inches
  • Length: 36 inches
  • Width: 24 inches
  • Weight: 40 lbs
  • Mobile-Cades can be filled with sand or water

Mobile-Cade Features and Advantages

  • Weight and size make this a truly portable plastic jersey barricade that requires just one person for setup
  • Inter-link system enables Mobile-Cades to connect to each other to form a line
  • Stackable design saves space and makes storing and shipping easy
  • Available in highly-visible orange, yellow, or white colors
  • UV inhibitors resist fading
  • No metal screws or moving parts
  • Inset area accommodates barricade lights
  • Two smooth surface areas per side for the addition of reflective tape or company logos
